• Anti-rust chain
• 3 Speed Sram IHG - Internal Hub Gear - Light in weight, compact at folding
• Patented 3D Forging (Weld-free) Handle Post Tube with upper half folding hinge
• Aluminum Chain Cover

Features:

• Frame, Handlebar, and seat post Material: 6061 Aluminum

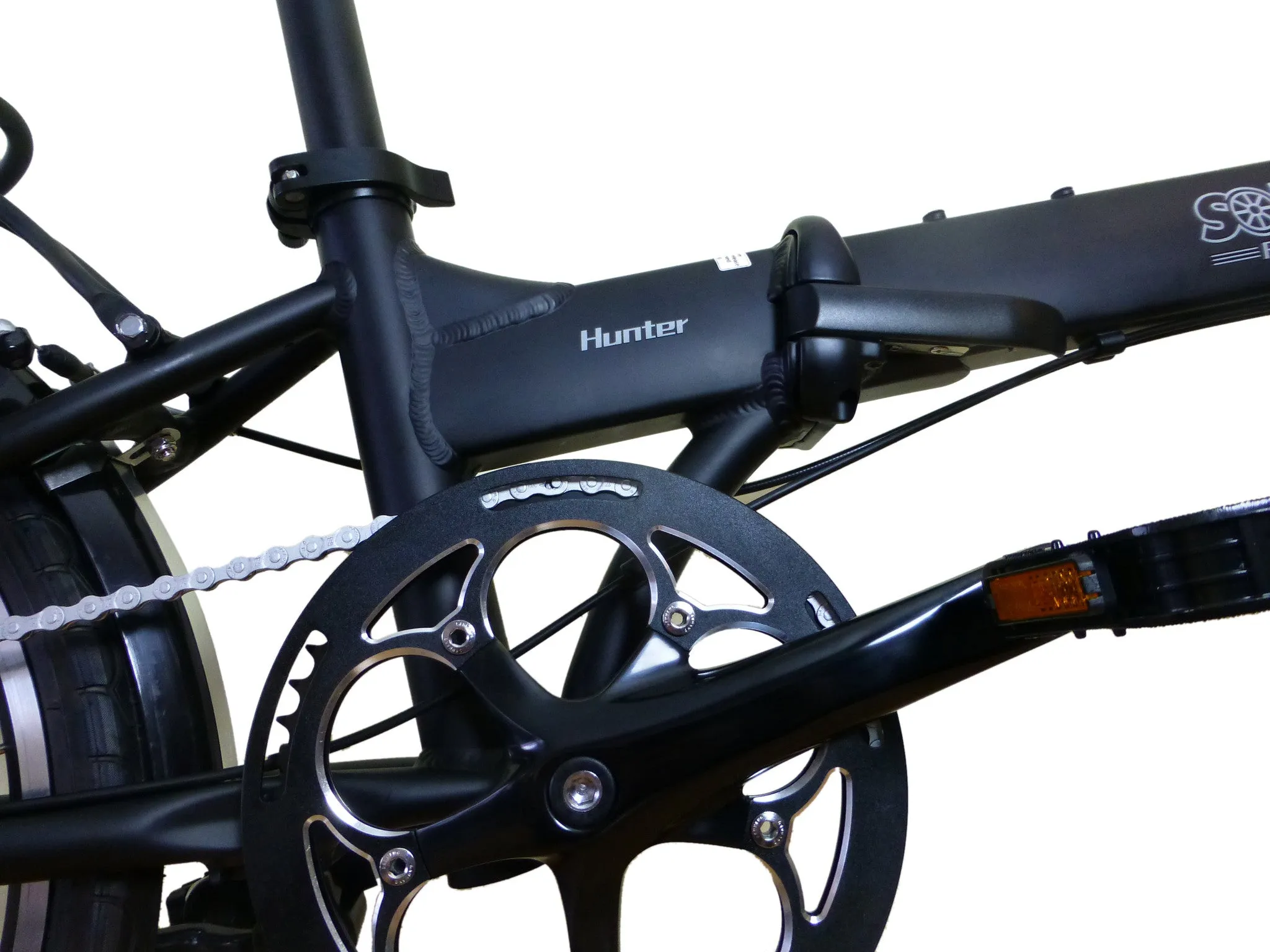

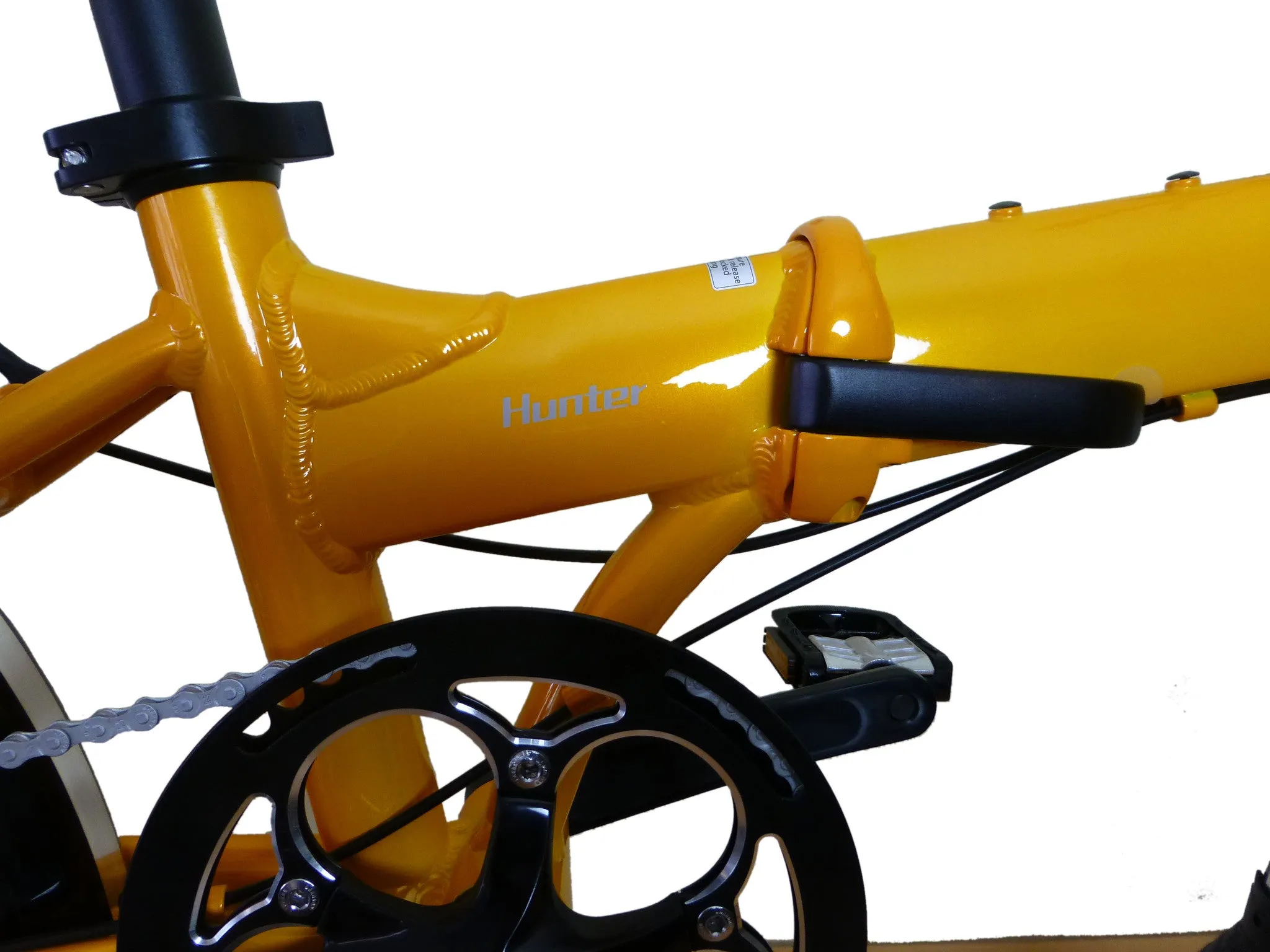

• Folding Hinges for top tube and handle bar: Patented forged aluminum folding hinges; Patented semi-arc clamps

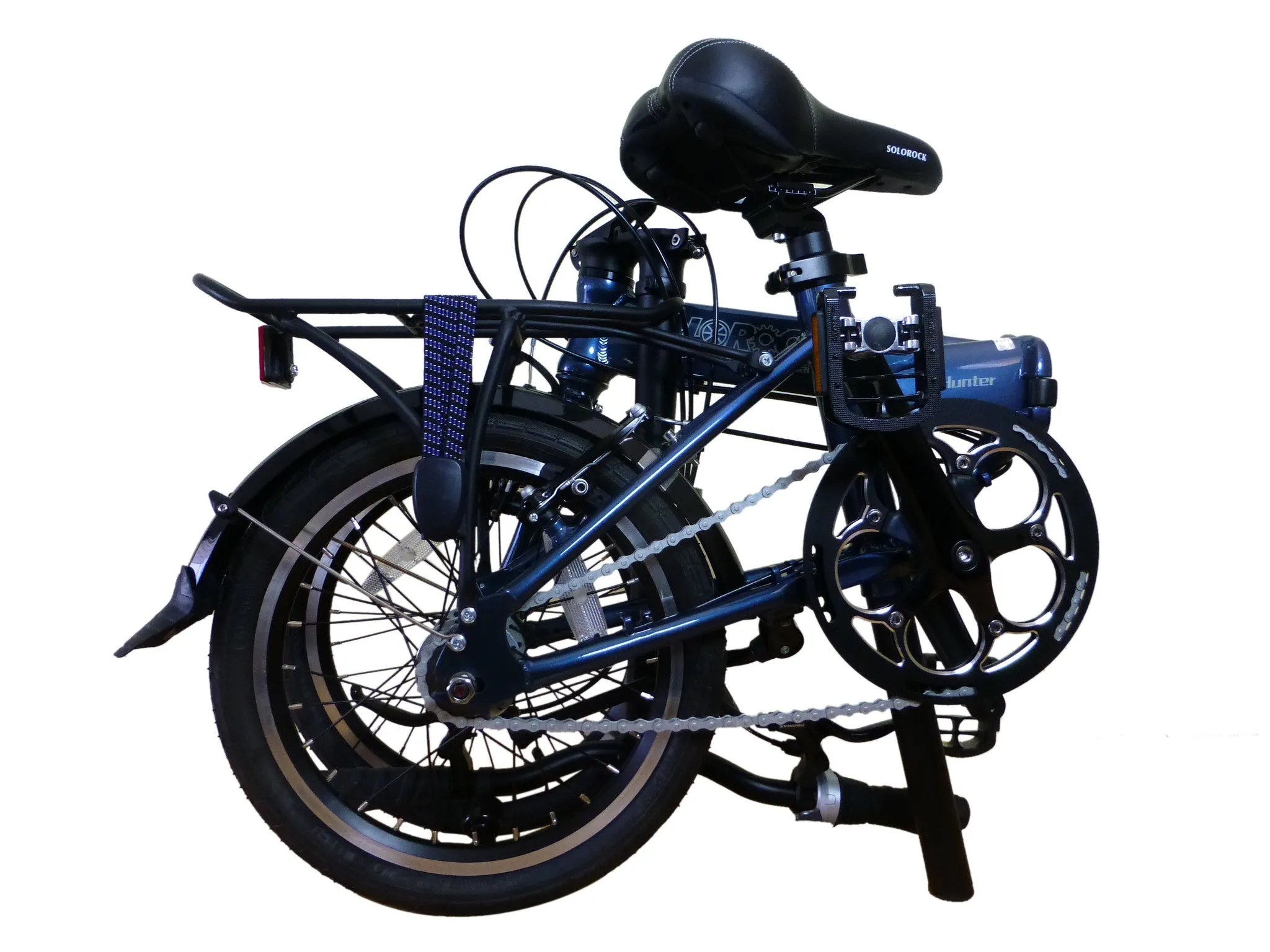

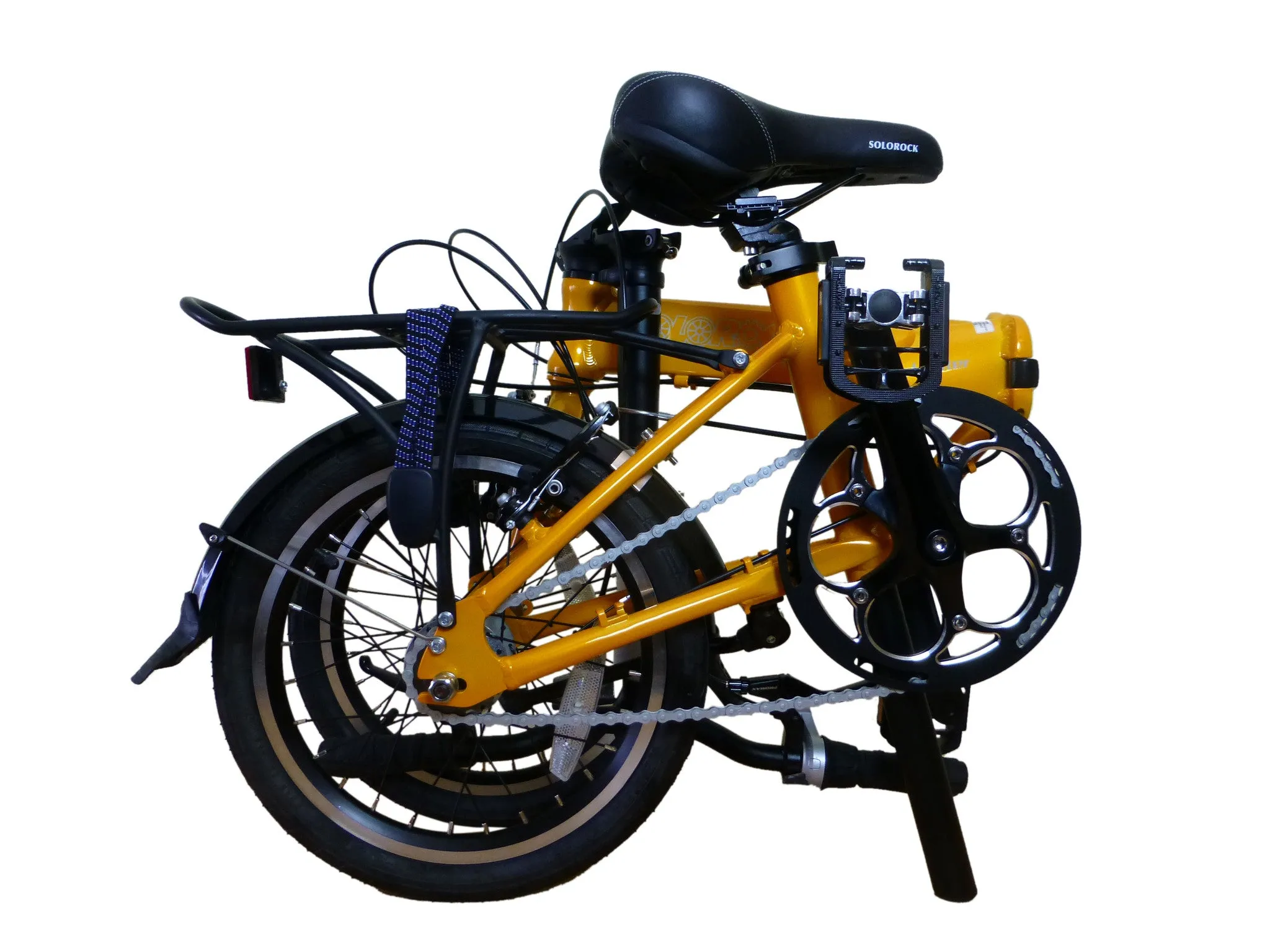

• Folding Size: 66 cm x 61 cm x 29 cm or 26” x 24” x 11.5”
• Bike Weight: 11 kg or 22 lb approx.
• Rider Weight: 100kg or 220lb Max.
• Rider Body Size: 1.37m-1.88m x 100kg max. or 4’6”-6’2”
• Folding Time: 15 sec.

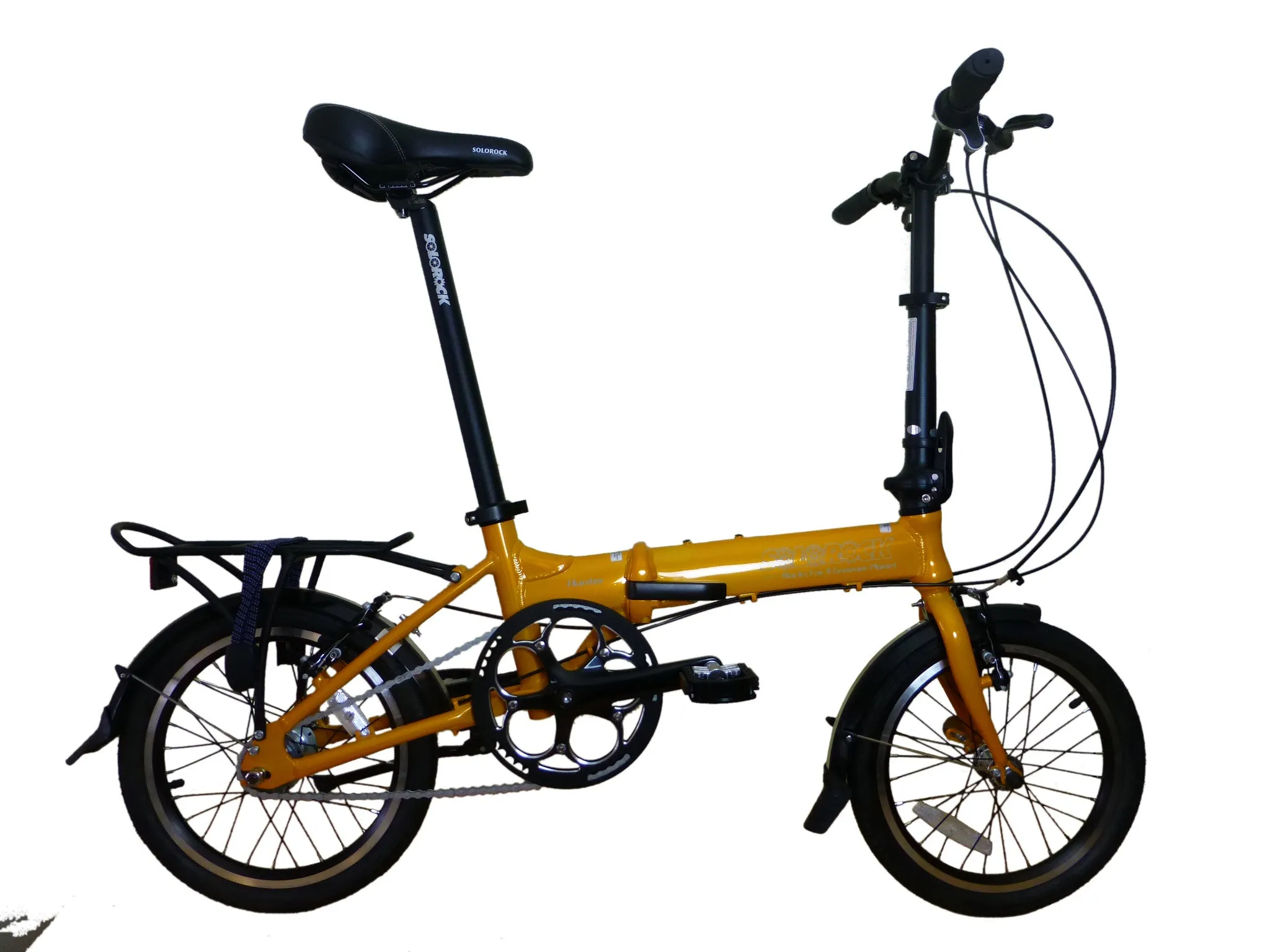

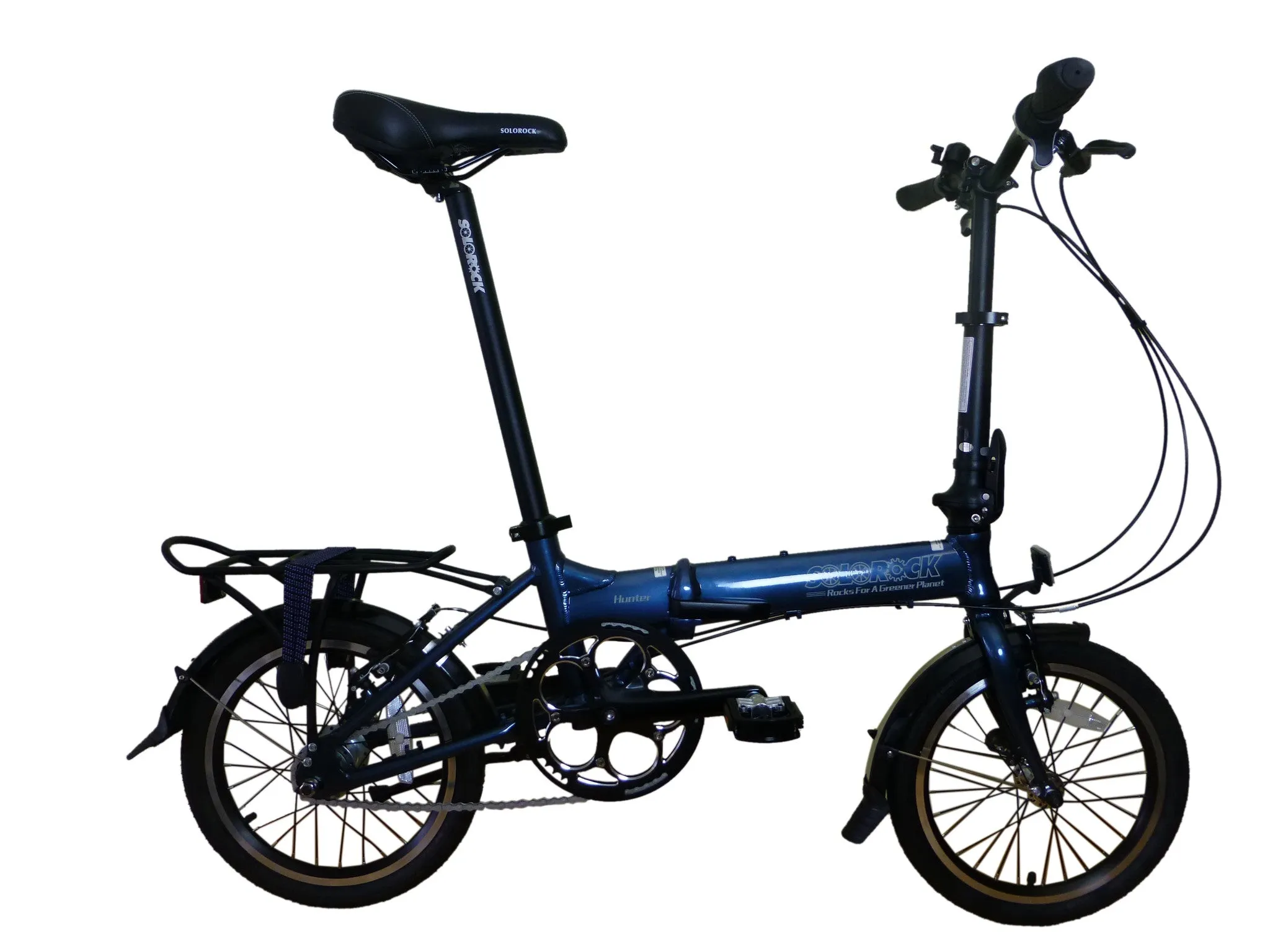

• 16” Aluminum Alloy K Frame, Chubbs head tube
• High-Tension Steel Fork, Curved taper blades

Cockpit:

• Handlepost: 6061 aluminum alloy handlepost, forged aluminum alloy folder
• Handlepost tube: 3D forged 6061 Aluminum with upper folder half, weld-free
• Handlebar: 6061 aluminum alloy, Telescopic, Twist-adjustable/Detachable Handle Bar
• Headset: Chin Haur or the like, Integrated
• Saddle: High density form fill, with clamp
• Seatpost: 6061 Aluminum, Super over-sized with laser-engraved scale mark, sand-anodized, aluminum seat tube bushing

Brakes:

• Promax V-Brakes, Linear Spring
• Aluminum Levers /Brackets

Wheels:

• Hubs: Anodized 6061 Aluminum, BK
• Rims: Anodized 6061 Aluminum, Double Wall-ed, CNC-ed side wall, Silver or BK
• Spokes: 14G Stainless Steel, ED
• Tires: 16” x 1.5” Kenda BK

Transmission:

• Speed Shifter: Sram 3 Speed

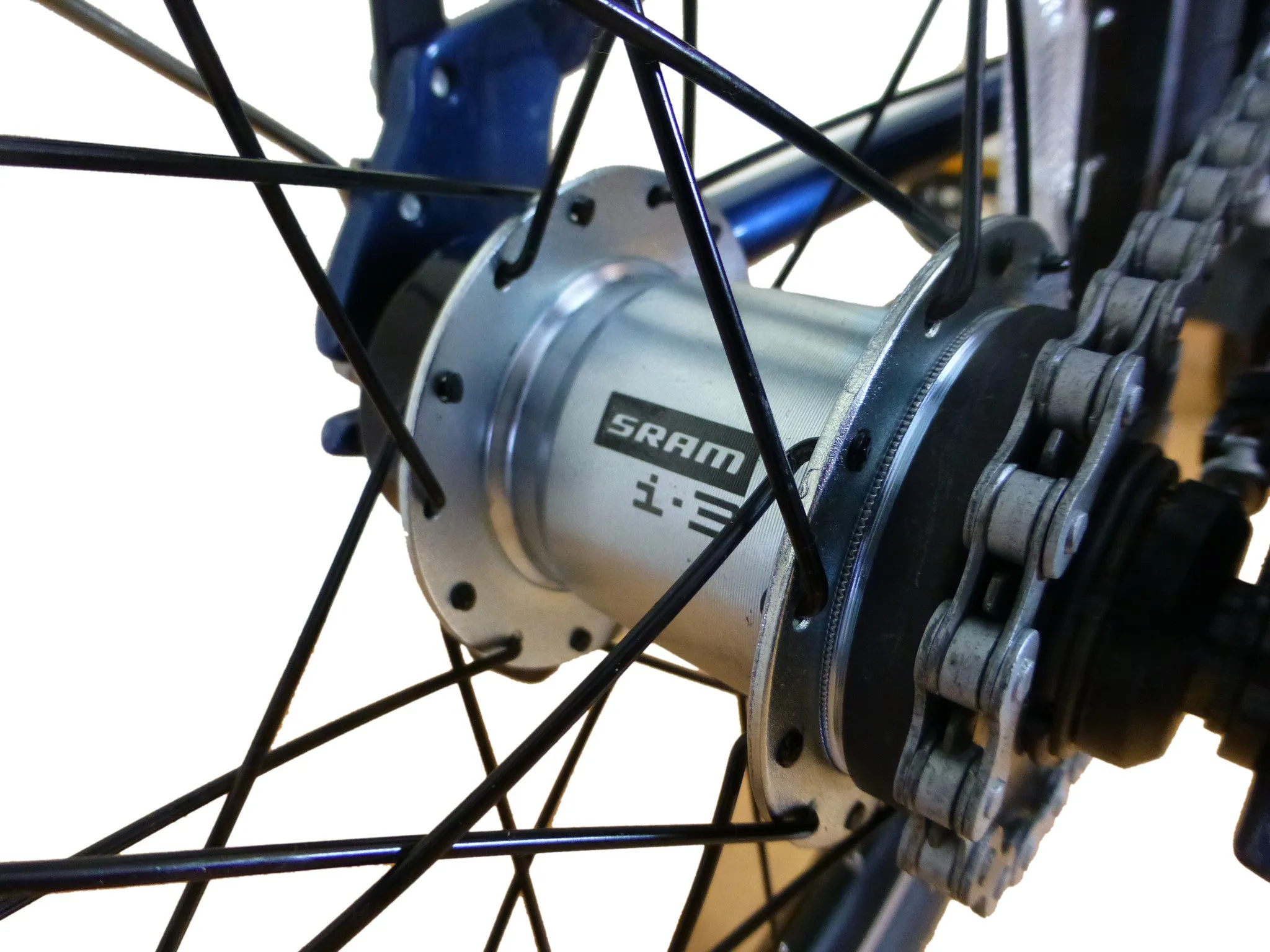

• Rear Derailleur: 3 Speed Sram Internal Hub Gear

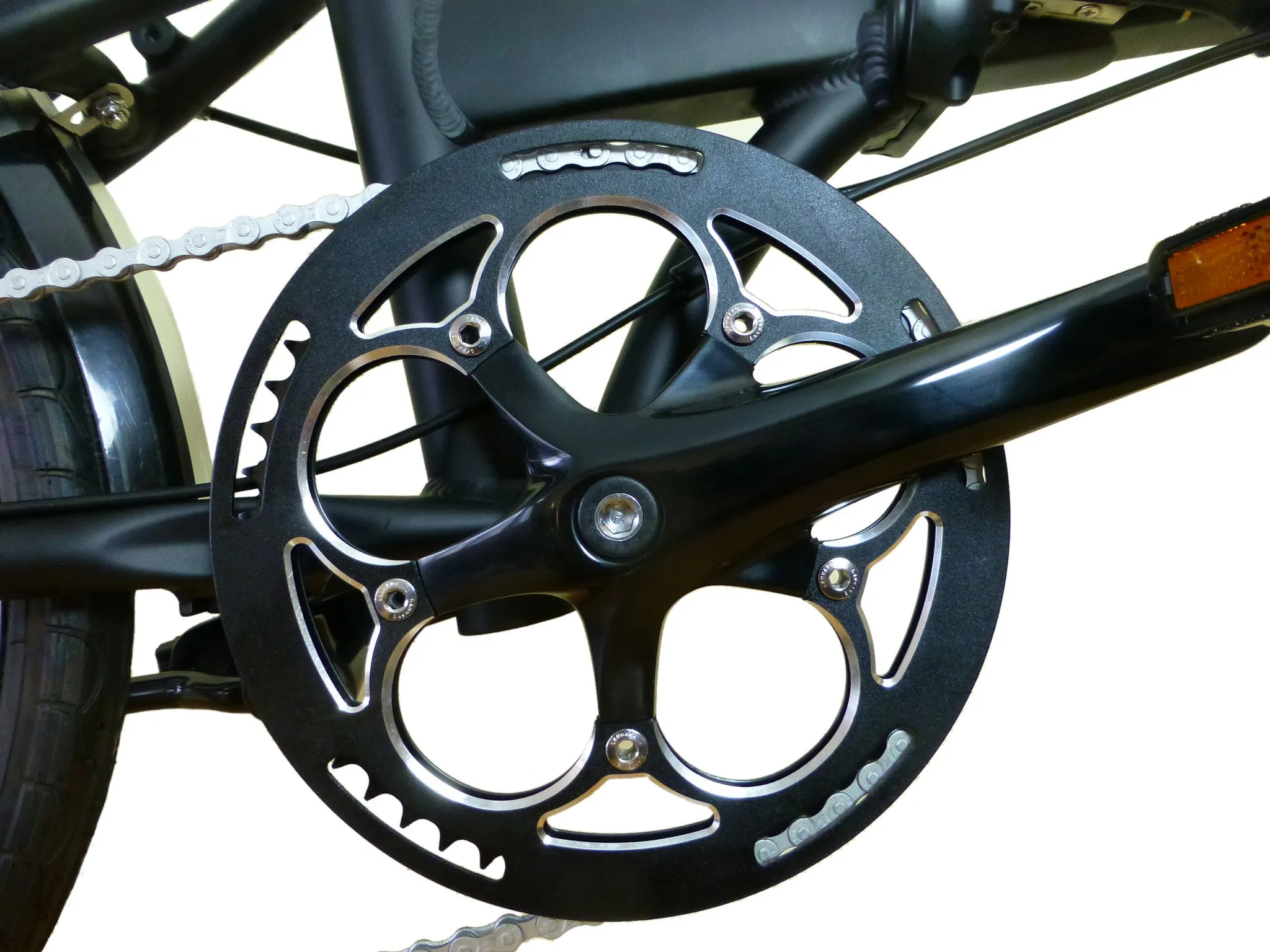

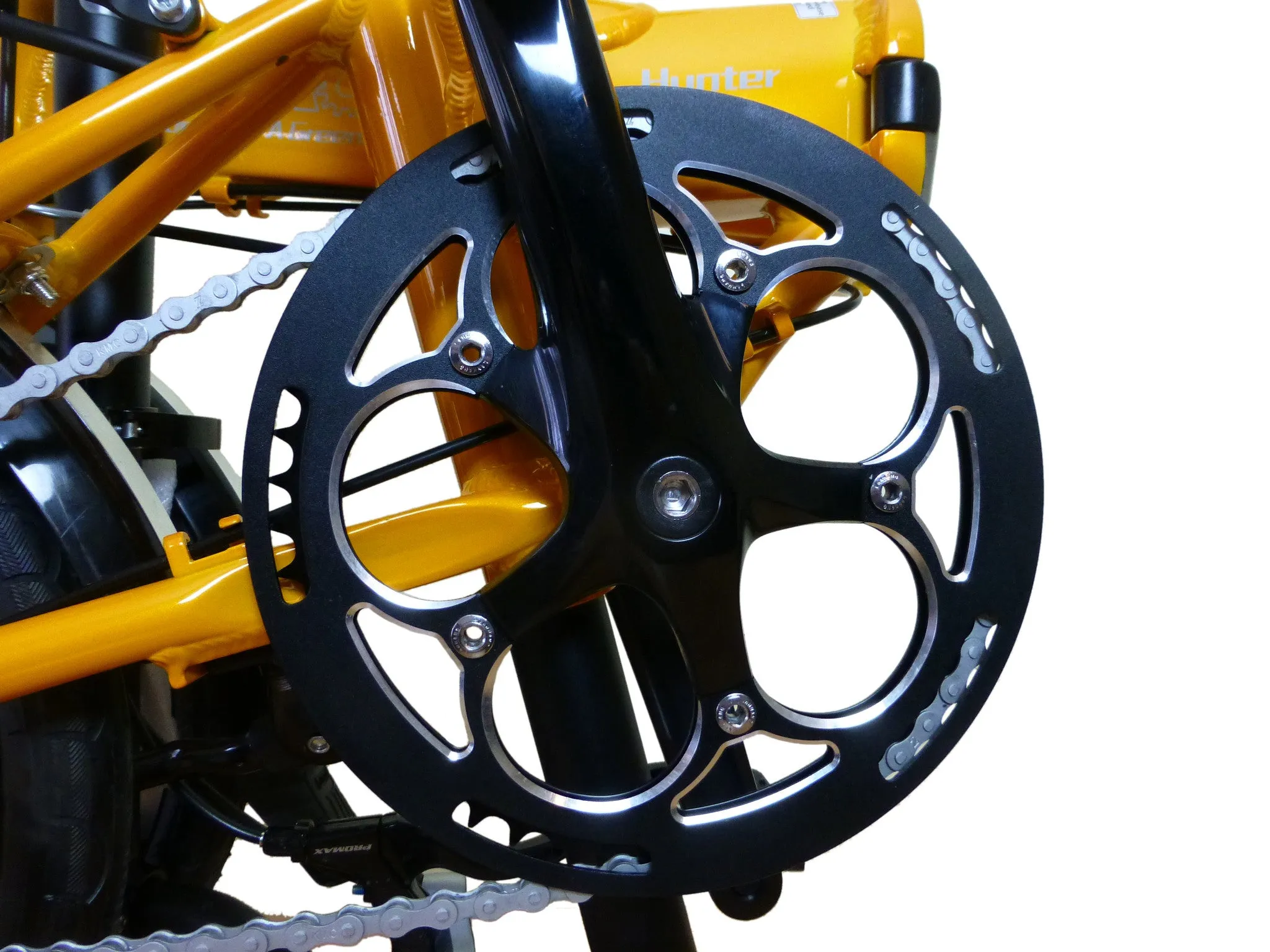

• Crank Set: Cold-Forged Aluminum Cranks, Anodized BK, Double Chain Guard
• Bottom Bracket: Neco cartridge - maintenance free, ED BK
• Chain: KMC Anti-Rust Surface Finished
• Pedals: Aluminum Folding With Reflector, BK

Accessories:

• Kick Stand: NUVO Aluminum, Central-mount, ED BK
• Fenders: PVC with Aluminum Plating and with tail flaps, BK
• Rear Carrier: Alloy high-strength steel, ED BK
• Bell: Silver
• Decals: Undercoating
• Folding Bike Carry Bag: Optional

Note: Actual parts may vary

Packaging:

• Gross Weight: 13 kg
• Carton Dimensions: 71 x 31.5 x 62 cm (28” x 12.4” x 24.4”)

Color:

• Black, 70% matt
• Pearl Orange
• Ocean Blue
